| SKU | MZ-V7P512BW |
|---|---|
| EAN | 0611002323389 |
| Manufacturer | Samsung |
| Availability | In Stock |
| PDF URLs |
View PDF |

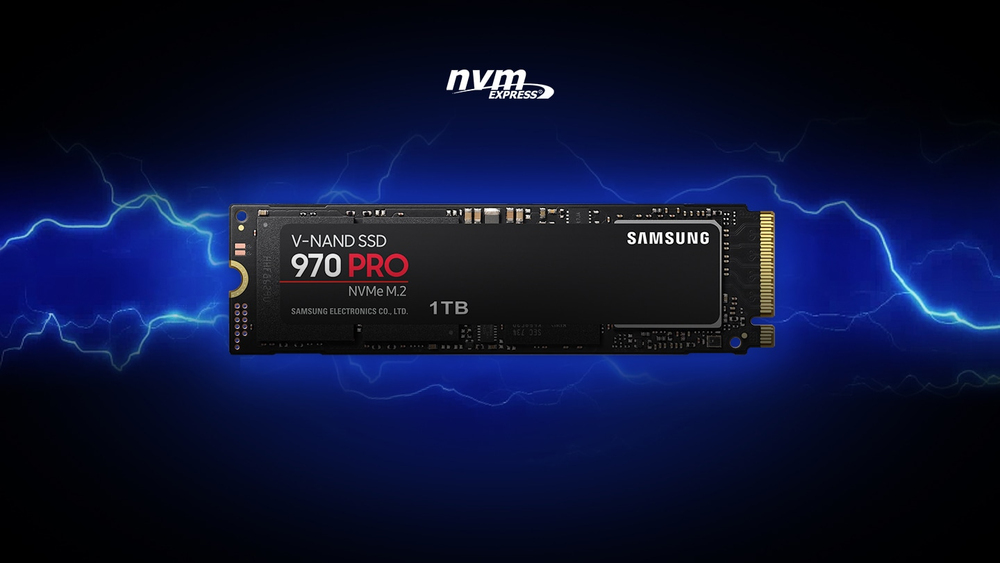

Experience the best. For intensive workloads on PCs and workstations, the 970 PRO gives utmost performance enabled by Samsung†s NVMe™ SSD leadership. The latest V-NAND technology and new Phoenix controller in a compact M.2 (2280) form factor surpass the demands of tech enthusiasts and professionals.
Performance that puts you in command. The 970 PRO combines the next-gen PCIe Gen 3x4 NVMe interface with the latest V-NAND technology and a newly enhanced Phoenix controller to achieve fearless read/write speeds of up to 3,500/2,700 MB/s[1] , approximately 30 percent faster than the previous generation.
Get the ultimate sustainable performance. The 970 PRO delivers up to 1,200 TBW[2] with a 5-year limited warranty, achieving 50 percent greater endurance than the previous generation, all powered by the latest V-NAND technology.
Achieve a new level of drive confidence. Samsungs advanced nickel-coated controller and heat spreader on the 970 PRO enable superior heat dissipation. The Dynamic Thermal Guard automatically monitors and maintains optimal operating temperatures to minimise performance drops.

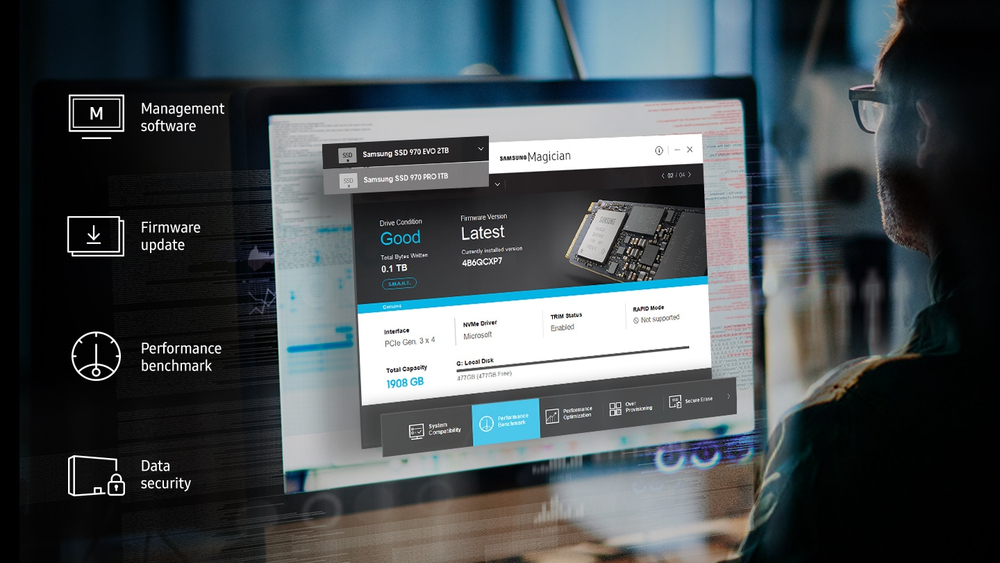

Advanced drive management made simple. The Samsung Magician software will help you keep an eye on your drive. A suite of user-friendly tools helps keep your drive up to date, monitor drive health and speed, and even boost performance.
| Hard drive | |
|---|---|
| PCI Express interface data lanes | x4 |
| SSD capacity | 512 GB |
| Memory type | V-NAND MLC |
| Data transmission | |
| Read speed | 3500 MB/s |
| Write speed | 2300 MB/s |
| Security | |
| Security algorithms | 256-bit AES |
| Endurance | |
| Mean time between failures (MTBF) | 1500000 h |
| Features | |
| Interface | PCI Express 3.0 |
| Component for | PC |
| Controller type | Samsung Phoenix |
| NVMe | Yes |
| NVMe version | 1.3 |
| NAND flash type | MLC (Multi Level Cell) |
| Opal SSC 2.0 | Yes |
| PCI Express interface data lanes | x4 |
| SSD capacity | 512 GB |
| Security algorithms | 256-bit AES |
| S.M.A.R.T. support | Yes |
| Read speed | 3500 MB/s |
| TRIM support | Yes |
| Write speed | 2300 MB/s |
| Memory type | V-NAND MLC |
| Mean time between failures (MTBF) | 1500000 h |
| SSD form factor | M.2 |
| TCG Opal 2.0 | Yes |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Harmonized System (HS) code | 84717070 |
| Power | |
| Power consumption DevSlp (device sleep) | 5 mW |
| Power consumption (write) | 5.2 W |
| Power consumption (read) | 5.2 W |
| Operating voltage | 3.3 V |
| Performance | |
|---|---|
| Interface | PCI Express 3.0 |
| Component for | PC |
| Controller type | Samsung Phoenix |
| NVMe | Yes |
| NVMe version | 1.3 |
| NAND flash type | MLC (Multi Level Cell) |
| Opal SSC 2.0 | Yes |
| PCI Express interface data lanes | x4 |
| SSD capacity | 512 GB |
| Security algorithms | 256-bit AES |
| S.M.A.R.T. support | Yes |
| Read speed | 3500 MB/s |
| TRIM support | Yes |
| Write speed | 2300 MB/s |
| Memory type | V-NAND MLC |
| Mean time between failures (MTBF) | 1500000 h |
| TCG Opal 2.0 | Yes |
| Design | |
| Component for | PC |
| Product colour | Black |
| SSD form factor | M.2 |
| Weight & dimensions | |
| Width | 3.16" (80.2 mm) |
| Weight | 0.282 oz (8 g) |
| Height | 0.872" (22.1 mm) |
| Depth | 0.0937" (2.38 mm) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -45 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating shock | 1500 G |
| Non-operating shock | 1500 G |
| Non-operating vibration | 20 G |
| Technical details | |
| Interface | PCI Express 3.0 |
| S.M.A.R.T. support | Yes |
| Operating temperature (T-T) | 0 - 70 °C |
| TRIM support | Yes |
| Storage temperature (T-T) | -45 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating shock | 1500 G |
| Non-operating shock | 1500 G |
| Non-operating vibration | 20 G |
| Product colour | Black |
| SSD form factor | M.2 |
| Compliance certificates | RoHS |
| Launch date | 4/16/2018 |
| Other features | |
| Product colour | Black |
| Launch date | 4/16/2018 |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 84717070 |
