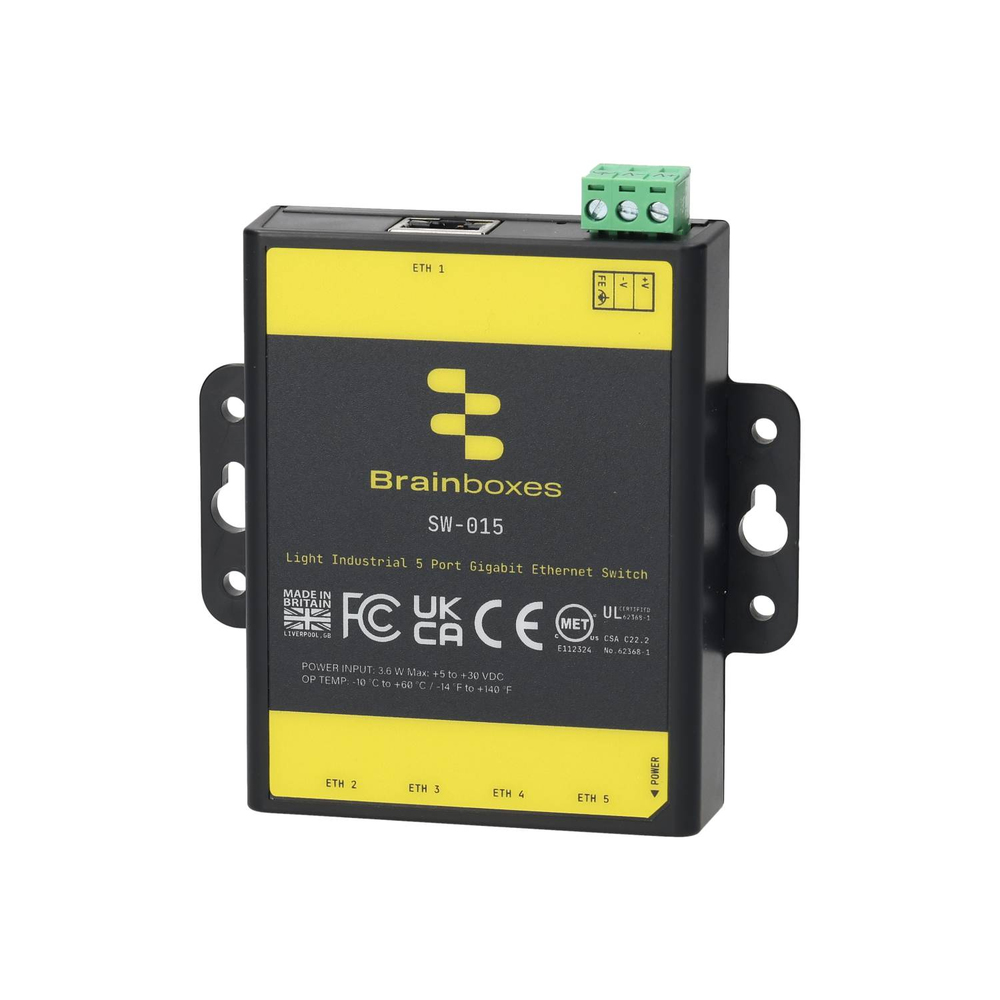

Backwards compatible - can plug into older networks, and connect to devices that are 10Mbs, Fast Ethernet (100Mbs) or Gigabit, whilst detecting the highest common speed between both ends of the connection
10x faster than Fast Ethernet

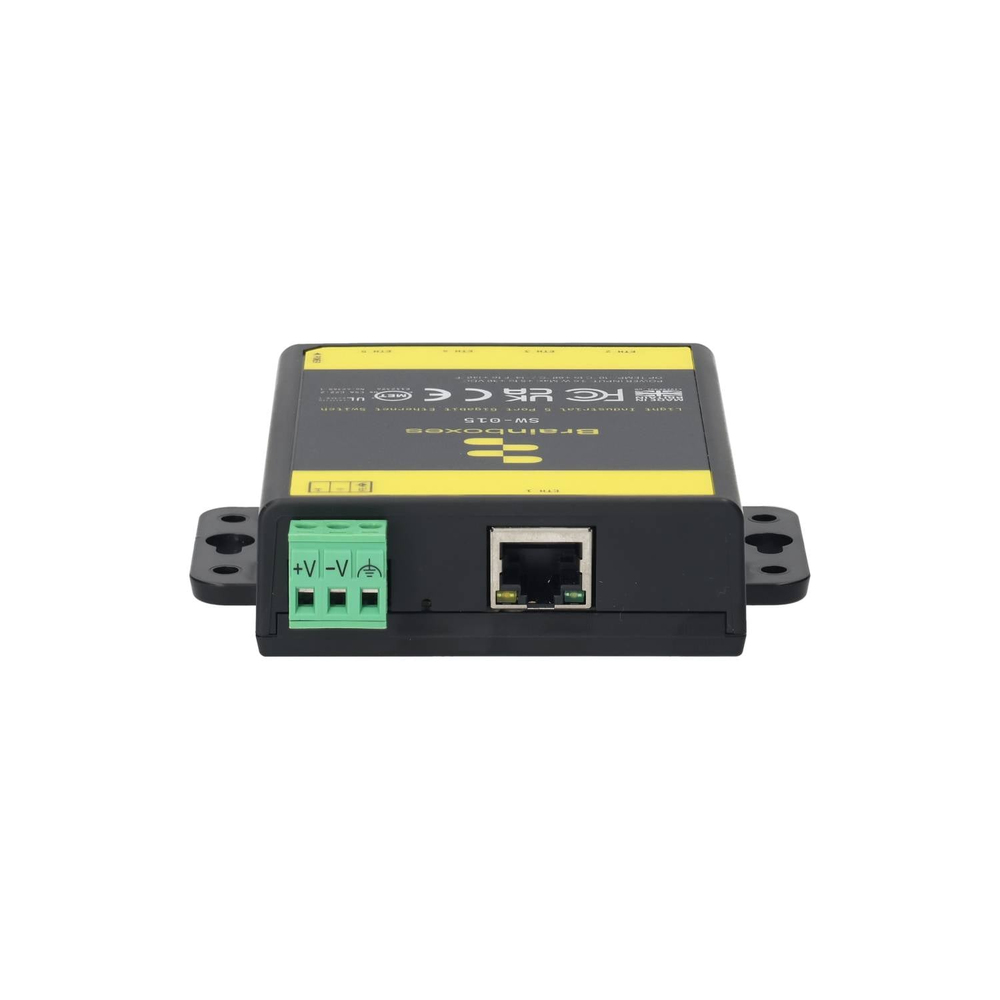

Wide 5+ to +30 VDC input allows the switch to be powered from a range of DC power sources

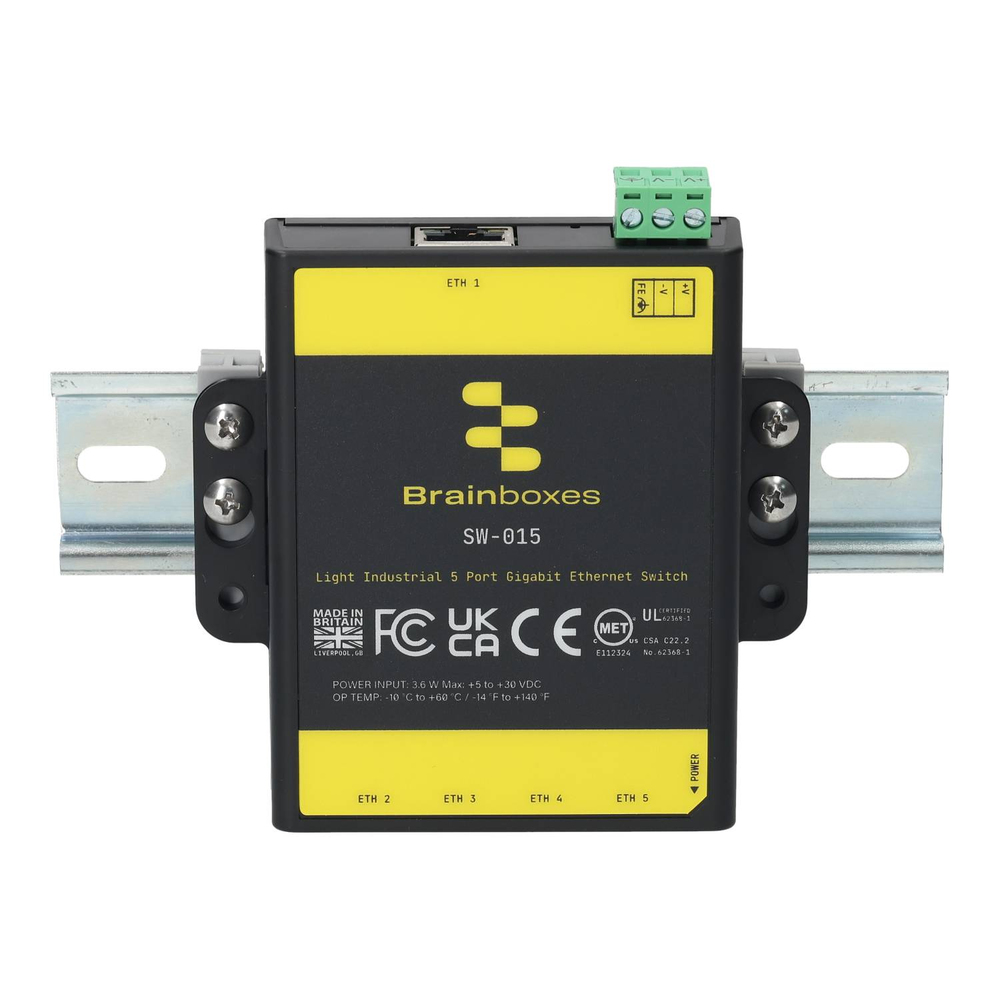

Wall mountable or DIN rail mountable
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Switch layer | L2 |
| Ports & interfaces | |

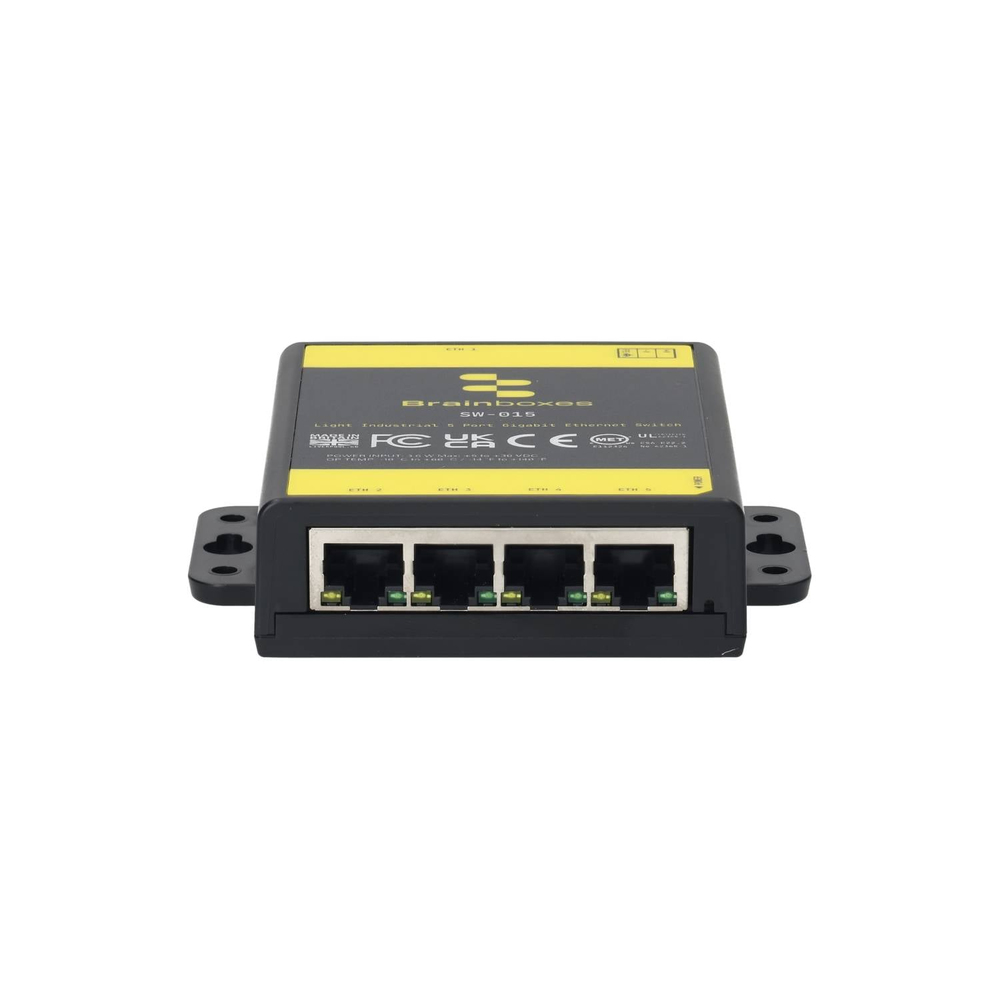

| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Network | |
| Auto-sensing | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Design | |
| Wall mountable | Yes |
| International Protection (IP) code | IP30 |
| DIN rail mounting | Yes |
| Form factor | DIN rail |
| Product colour | Black, Green |
| LED indicators | Activity, Link, Speed |
| Housing material | Polyamide |
| Certification | Microsoft Certified Gold Partner, WEEE, RoHS, AEO (C-TPAT), CE |
| Performance | |
| Export Control Classification Number (ECCN) | 5A991.b |
| Harmonized System (HS) code | 851762 |
| Power | |
| Power consumption (max) | 3.6 W |
| Power protection features | Reverse polarity |
| DC input voltage | 5 - 30 V |
| Power source | DC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Power protection features | Reverse polarity |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -10 - 70 °C |
| Operating temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 4.33" (110 mm) |
| Depth | 3.94" (100 mm) |
| Height | 1.18" (30 mm) |
| Weight | 4.55 oz (129 g) |
| Packaging content | |
| Quick start guide | Yes |
| Packaging data | |
| Package width | 6.3" (160 mm) |
| Package depth | 5.31" (135 mm) |
| Package height | 1.93" (49 mm) |
| Package weight | 7.37 oz (209 g) |
| Quick start guide | Yes |
| Technical details | |
| Form factor | DIN rail |
| Product colour | Black, Green |
| Housing material | Polyamide |
| Certificates | |
| Certification | Microsoft Certified Gold Partner, WEEE, RoHS, AEO (C-TPAT), CE |
| Indication | |
| LED indicators | Activity, Link, Speed |
| Logistics data | |
| Harmonized System (HS) code | 851762 |
